FiberTEK III adapters are used with LanTEK III for fast and simple certification of high bandwidth single-mode and multimode fiber optic cabling including support for encircled flux testing (optional).

To pinpoint fiber cabling faults every FiberTEK III adapter includes a built-in visible light source to help you visually pinpoint faults and locate fiber ports.

FiberTEK III provides optical loss (dB) measurements meeting Tier 1 certification requirements.

Available in multi-mode (850/1300nm) and single mode (1310/1550nm) varieties.

Click here to view the LanTEK III cable certifier.

Click here to view the IDC data result management software.

Click here for the IDEAL AnyWARE app.

The main applications for FiberTEK III is the testing of fiber optic MM and SM cabling in LAN and campus applications.  Its key feature is to measure attenuation and length of a fiber optic link. (also known as “Tier 1 Certification”). The test can be carried out during installation as well as during fault finding:

  • Certifying cable performance to ISO 11801 and TIA 568-C standards
  • Meet cabling specifications as required by engineers, designers and clients
  • Provide proof of good workmanship when the client does not require certification tests
  • Avoid call-backs by identifying faults while onsite
  • Convert warranty call-backs into chargeable service calls
  • Dispute resolution between network equipment/configuration versus cable installation

Installation of:

  • building backbone cabling (“secondary cabling”)
  • inter building cabling and campus cabling (primary cabling)
  • FTTD (Fibre To The Desk) cabling (“tertiary cabling”)
  • Cabling for building automation
  • Cabling for industrial automation
  • SAT cabling

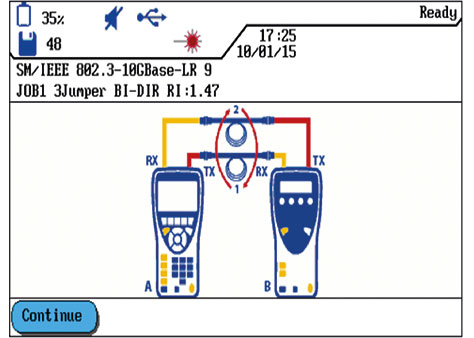

Setup Wizard

Select field calibration (1-Jumper|3-Jumper) and measurement modes (Loopback|Normal), (Uni-Directional|Bi-Directional)

Auto-test

Perform auto-tests using the intuitive graphical interface to reduce mistakes and ensure accurate certification results.

Review Results

Tier 1 certification results display:

  • ISO/TIA/IEEE test standard
  • Pass/Fail result
  • dB loss of each fibre at each wavelength
  • dB loss in each direction (when testing bi-directionally)
  • Fiber link length
  • dB margin / headroom

FiberTEK III-MM LED Kit

FiberTEK® III multimode (850/1300nm) kit with LED light sources for standard multimode fibre.

Compatible with all LanTEK II (planned availability Q2/16) and LanTEK III models.

Kit Contents

Includes two multimode FiberTEK III modules, lockable semi-rigid carrying case, SC, FC, ST adapters for modules (2 ea.), SC-SC patch cords, 6 x 50μm MMF compliant to ISO/IEC 14763-3 standard, quick reference guide.

Product Number:

R164005

FiberTEK III-SM Laser Kit

FiberTEK III single mode (1310/1550nm) kit with laser light sources for single mode fibre.

Compatible with all LanTEK II (planned availability Q2/16) and LanTEK III models.

Kit Content

Includes two single-mode FiberTEK III modules, lockable semi-rigid carrying case, SC, FC, ST adapters for modules (2 ea.), SC-SC patch cords, 6 x 9μm SMF compliant to ISO/IEC 14763-3 standard, quick reference guide.

Product Number:

R164006

FiberTEK III-MM LED & SM Laser Kit

FiberTEK® III multimode (850/1300nm) kit with LED light sources for standard multimode fibre.

Compatible with all LanTEK II (planned availability Q2/16) and LanTEK III models.

FiberTEK III combination MM/SM kit with LED MM sources and laser SM sources.

Compatible with all LanTEK II (planned availability Q2/16) and LanTEK III models.

Kit Content

Includes two multimode FiberTEK III modules, two single-mode FiberTEK III modules, lockable semi-rigid carrying case, SC, FC, ST adapters for modules (2 ea.), SC-SC patch cords, 6 x 9μm SMF, 6 x 50μm MMF compliant to ISO/IEC 14763-3 standard, quick reference guide.

Product Number:

R164007
