Ultra-high-speed, Enterprise Wireless LAN Solution
To meet enterprise demand for wireless communication, PLANET WDAP-C7200E 1200Mbps Dual Band 802.11ac Wireless AP supports central management through PLANET AP controllers. With IEEE 802.11ac 2T2R dual-band technology, the WDAP-C7200E provides a maximum wireless speed of 867Mbps at 5GHz and 300Mbps at 2.4GHz.

Powerful Dual-band WLAN Solution
PLANET WDAP-C7200E, adopting the IEEE 802.11ac standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously. Furthermore, the WDAP-C7200E adopts the high-class Qualcomm Atheros SoC (System-on-a-Chip), which provides higher stability to meet the stringent requirements of the solution.

Advanced Security and Rigorous Authentication
The WDAP-C7200E supports 128-bit WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. For management purposes, the IEEE 802.1Q VLAN supported allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access.

Ceiling-mount Design for Your Environment
With the standard IEEE802.3at Power over Ethernet (PoE) design, the WDAP-C7200E can be easily installed in the areas where power outlets are not available. By supporting the standard IEEE 802.3at PoE PD power scheme, the WDAP-C7200E can be powered and networked by a single UTP cable, effectively eliminating the needs of dedicated electrical outlets on the ceiling and reducing the cabling cost. Furthermore, the system administrator is able to arrange the PoE schedule of the WDAP-C7200E by working with the managed PoE switch.

Easy Installation and Management
With user-friendly Web UI and step-by-step Quick Setup Wizard, the WDAP-C7200E is easy to install, even for users who never experience setting up a wireless network. Furthermore, you can simply install our software controller, PLANET SAPC (Smart AP Control), to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

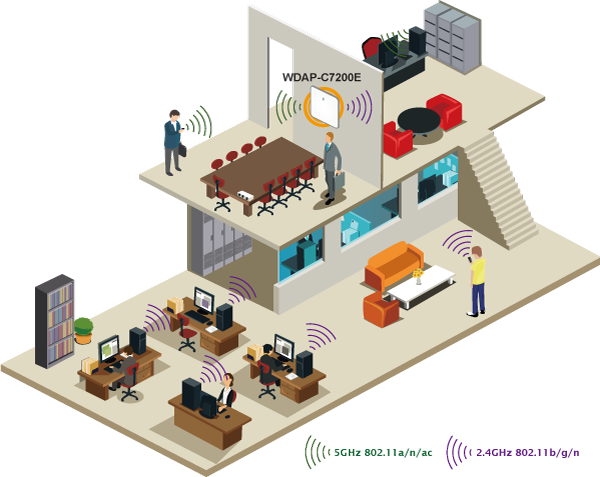

Extreme High Speed and Dual Band Make Wi-Fi Transmission More Powerful
The WDAP-C7200E delivers the Dual Band technology to avoid signal interference and ensure the best Wi-Fi performance. It allows you to check e-mails and surf the Internet via the 2.4GHz band and simultaneously watch High-Definition (HD) video or any other multimedia application via 5GHz band. Moreover, the Gigabit Ethernet port of the WDAP-C7200E offers ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will have real wireless speed over 100Mbps. With outstanding stability of high-speed wireless transmission, the WDAP-C7200E can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.

Multiple Operation Modes for Various Applications
WDAP-C7200E supports AP, Gateway, WDS Bridge PtP, WDS Bridge PtMP and Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-C7200E offers more powerful and flexible capability for wireless clients.

Industrial Compliant Wireless LAN and LAN

  • Compliant with the IEEE 802.11a/b/g/n/ac wireless technology
  • Equipped with 10/100/1000Mbps RJ45 ports, auto MDI/MDI-X supported

RF Interface Characteristics

  • 802.11ac 2T2R MIMO architecture with data rate of up to 1200Mbps (300Mbps at 2.4GHz and 867Mbps at 5GHz)
  • High output power with multiply-adjustable transmit power control

Multiple Operation Modes and Wireless Features

  • Multiple operation modes: AP, Gateway, Repeater, WDS
  • WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
  • Coverage threshold to limit the weak signal of clients occupying session
  • Real-time Wi-Fi channel analysis chart and client limit control for better performance

Secure Network Connection

  • Full encryption supported: 64-/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
  • Supports 802.1Q VLAN and SSID-to-VLAN mapping
  • Supports IP/Port/MAC address/URL filtering, DoS, SPI Firewall
  • Supports DMZ and Port forwarding
  • Bandwidth control per IP address to increase network stability

Easy Deployment and Management

  • Supports PLANET AP Controllers in AP mode
  • Easy discovery by PLANET Smart Discovery
  • Self-healing mechanism through system auto reboot setting
  • System status monitoring through remote Syslog Server
  • Supports PLANET DDNS/ Easy DDNS
Hardware Specifications
Interfaces LAN 2 x 10/100/1000BASE-T RJ45 port, 1 port 802.3at PoE In
Auto-negotiation and Auto MDI/MDI-X
Antennas Gain 4 x Internal 5dBi antenna (2.4G x2, 5G x2)
Reset Button Reset button on the rear side (Press over 15 seconds to reset the device to factory default)
LED Indicators SYS, 2.4G, 5G
Dimensions (Φ x H) 198 x 28mm
Weight 498 ±5g
Power Requirements 48V 0.5A, IEEE 802.3at PoE+ or
12V DC, 1.5A
Power Consumption < 20W
Mounting Ceiling Mount
Wireless Interface Specifications
Standard IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
Media Access Control CSMA/CA
Data Modulation 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode 2.4G / 5G concurrent mode
Frequency Range 2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHzOperating ChannelsFCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 Channels)

*5GHz channel list will vary in different countries according to their regulations.Max. Transmit Power (dBm)FCC: up to 29 ± 1dBm
ETSI: < 20dBm (EIRP)Receive Sensitivity2.4GHz:
802.11n HT20(MCS0/MCS8):-95dBm
802.11n HT20(MCS7/MCS15):-77dBm
802.11n HT40(MCS0/MCS8):-93dBm
802.11n HT40(MCS7/MCS15):-75dBm

802.11n HT20(MCS0/MCS8):-91dBm
802.11n HT20(MCS7/MCS15):-72dBm
802.11n HT40(MCS0/MCS8):-88dBm
802.11n HT40(MCS7/MCS15):-70dBm
802.11ac VHT20(MCS0):-92dBm
802.11ac VHT20(MCS8):-70dBm
802.11ac VHT40(MCS0):-89dBm
802.11ac VHT40(MCS9):-65dBm
802.11ac VHT80(MCS0):-87dBm
802.11ac VHT80(MCS9):-61dBm

Software Features
LAN Static IP
Supports IP-MAC binding
WAN ■ Static IP
■ Dynamic IP
Wireless Mode ■ Access Point
■ Gateway
■ Repeater
■ WDS (PtP/PtMP)
Channel Width 20MHz, 40MHz, 80MHz
Encryption Security 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security Enable/Disable SSID Broadcast
Wireless MAC address filtering
User Isolation
Max. SSIDs 4
Max. Clients 64 per radio (50 is suggested, depending on usage)
Max. WDS Peers 4
Wireless QoS Supports Wi-Fi Multimedia (WMM)
Wireless Advanced WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSID: up to 4 at 2.4GHz and 5GHz, respectively
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
Provides Wireless Statistics
Wireless Advanced Auto Channel Selection
5-level Transmit Power Control (100%, 75%, 50%, 25%, 12.5%)
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Status Monitoring Device status, Wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLAN IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healing Supports auto reboot settings per day/hour
Management Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC)
Environment & Certification
Temperature Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C
Humidity Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
Regulatory CE, RoHS
Date Version Description Download
2018-06-08 1.0 WDAP-C7200E
Date Version Description Download
2018-04-13 1.0-Build20180316104845_FCC Initial Release for WDAP-C7200E-FCC.
2018-04-13 1.0-Build20180316103131_ETSI Initial Release for WDAP-C7200E-ETSI.
Quick Guide
Date Version Description Download
2018-01-15 1.0 Initial release.
Ordering Information


1200Mbps 802.11ac Dual Band Ceiling-mount Wireless Access Point
