MGB-Series Transceiver

Planet 1000BASE-SX/LX SFP Transceiver

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable.

SKU: PTMGB-XX
Categories: ,

Overview

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).

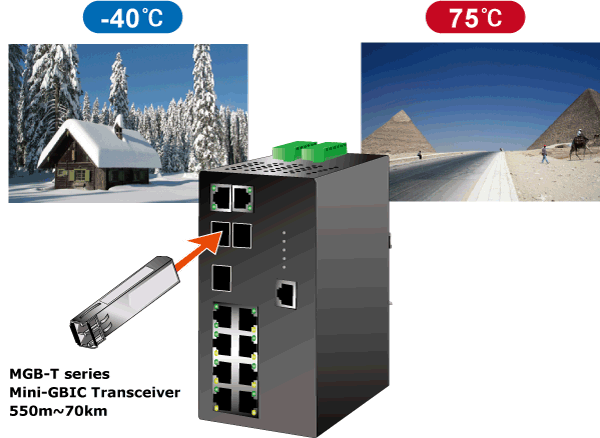

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Applications

The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media
Converter products with 1000BASE-SX/LX/BX SFP interface. The deployment distance can be extended from 550m (Multi-Mode, LC) up to 120 kilometers (Single-mode, LC).

The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to / from any SFP port without having to power off the Switch/Media Converter.

The MGB-T series 1000BASE-SX/LX/BX transceivers is an ideal solution for -40℃ to 75℃ wide temperature industrial equipment with 1000BASE-SX/LX/BX SFP interfaces. The deployment distance can be extended from 550m (Multi-Mode, LC) to 10 / 30 / 70 kilometers (Single-Mode, LC).

Key Features

  • Comply with the IEEE 802.3ab / 802.3z Gigabit Ethernet standard
  • 1 X 1000Mbps TP/ LC fiber port
  • Duplex/Single LC connector
  • Differential PECL inputs and outputs
  • Single power supply 3.3V
  • TTL signal detect indicator
  • Hot Pluggable
  • Class 1 laser product complies with EN 60825-1
  • Plug and Play Installation
  • 0 to 60 degrees C operating temperature for MGB-GT / MGB-SX / MGB-LX / MGB-L30 / MGB-L50 / MGB-L70 / MGB-L120 / MGB-LA10&MGB-LB10 / MGB-LA20&MGB-LB20 / MGB-LA40&MGB-LB40 / MGB-LA60&MGB-LB60
  • -40 to 75 degrees C operating temperature for MGB-TSX / MGB-TLX / MGB-TL30 / MGB-TL70 / MGB-TLA10&MGB-TLB10 / MGB-TLA20&MGB-TLB20 / MGB-TLA40&MGB-TLB40 / MGB-TLA60&MGB-TLB60

Specifications

MGB-SX
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector LC
Wavelength 850nm
Maximum Distance 220m~550m
Operating Temperature 0 ~ 60 degrees C
MGB-SX2
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector LC
Wavelength 1310nm
Maximum Distance 2km
Operating Temperature 0 ~ 60 degrees C
MGB-LX
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single Mode
Connector LC
Wavelength 1310nm
Maximum Distance 10km
Operating Temperature 0 ~ 60 degrees C
MGB-L30
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single Mode
Connector LC
Wavelength 1310nm
Maximum Distance 30km
Operating Temperature 0 ~ 60 degrees C
MGB-L50
PHY Type IEEE 802.3z 1000BASE-EX
Fiber Type Single Mode
Connector LC
Wavelength 1550nm
Maximum Distance 50km
Operating Temperature 0 ~ 60 degrees C
MGB-L70
PHY Type IEEE 802.3z 1000BASE-ZX
Fiber Type Single Mode
Connector LC
Wavelength 1550nm
Maximum Distance 70km
Operating Temperature 0 ~ 60 degrees C
MGB-L120
PHY Type IEEE 802.3z 1000BASE-ZX
Fiber Type Single Mode
Connector LC
Wavelength 1550nm
Maximum Distance 120km
Operating Temperature 0 ~ 60 degrees C
MGB-LA10
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 10km
Operating Temperature 0 ~ 60 degrees C
MGB-LB10
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 10km
Operating Temperature 0 ~ 60 degrees C
MGB-LA20
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 20km
Operating Temperature 0 ~ 60 degrees C
MGB-LB20
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 20km
Operating Temperature 0 ~ 60 degrees C
MGB-LA40
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 40km
Operating Temperature 0 ~ 60 degrees C
MGB-LB40
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 40km
Operating Temperature 0 ~ 60 degrees C
MGB-LA60
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 60km
Operating Temperature 0 ~ 60 degrees C
MGB-LB60
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 60km
Operating Temperature 0 ~ 60 degrees C
MGB-GT
PHY Type IEEE 802.3ab 1000BASE-T
Connector RJ45, Auto-negotiation, Auto-MDI/MDI-X
Maximum Distance 100m
Operating Temperature 0 ~ 60 degrees C
MGB-TSX
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector LC
Wavelength 850nm
Maximum Distance 220m & 550m
Operating Temperature -40 ~ 75 degrees C
MGB-TLX
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single Mode
Connector LC
Wavelength 1310nm
Maximum Distance 10km
Operating Temperature -40 ~ 75 degrees C
MGB-TL30
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single Mode
Connector LC
Wavelength 1310nm
Maximum Distance 30km
Operating Temperature -40 ~ 75 Degree C
MGB-TL70
PHY Type IEEE 802.3z 1000BASE-ZX
Fiber Type Single Mode
Connector LC
Wavelength 1550nm
Maximum Distance 70km
Operating Temperature -40 ~ 75 degrees C
MGB-TLA10
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 10km
Operating Temperature -40 ~ 75 degrees C
MGB-TLB10
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 10km
Operating Temperature -40 ~ 75 degrees C
MGB-TLA20
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 20km
Operating Temperature -40 ~ 75 degrees C
MGB-TLB20
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 20km
Operating Temperature -40 ~ 75 degrees C
MGB-TLA40
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 40km
Operating Temperature -40 ~ 75 degrees C
MGB-TLB40
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 40km
Operating Temperature -40 ~ 75 degrees C
MGB-TLA60
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 60km
Operating Temperature -40 ~ 75 degrees C
MGB-TLB60
PHY Type IEEE 802.3ah 1000BASE-BX
Fiber Type Single Mode
Connector WDM/Bidi LC
Wavelength TX: 1550nm, RX: 1310nm
Maximum Distance 60km
Operating Temperature -40 ~ 75 degrees C

Downloads

Datasheet
Date Version Description Download
2015-04-10 1.0 MGB-Series
User’s Manual
Date Version Description Download
2018-03-30 1.95 Add MTB-RJ
2017-12-11 1.94 Add MFB-TSA and MFB-TSB.
2016-05-10 1.92 Add: MTB-TSR, MTB-TLR.
2015-07-30 1.91 Modify page 17.
2014-08-15 1.9 Add MTB-LAx and MTB-LBx.
2010-07-15 1.4 Add Wide Temperature Transceiver.
EC Declaration
Date Version Description Download
2017-01-06 1.1 EC Declaration
Ordering Information

MGB-GT

 SFP-Port 1000BASE-T Module

MGB-LX

 SFP-Port 1000BASE-LX mini-GBIC module – 10km

MGB-SX

 SFP-Port 1000BASE-SX mini-GBIC module – 550m

MGB-SX2

 SFP-Port 1000BASE-SX mini-GBIC module – 2km

MGB-L30

 SFP-Port 1000BASE-LX mini-GBIC module – 30km

MGB-L50

 SFP-Port 1000BASE-LX mini-GBIC module – 50km

MGB-L70

 SFP-Port 1000BASE-LX mini-GBIC module – 70km

MGB-L120

 SFP-Port 1000BASE-LX mini-GBIC module – 120km

MGB-LA10

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-10km

MGB-LB10

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-10km

MGB-LA20

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-20km

MGB-LB20

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-20km

MGB-LA40

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-40km

MGB-LB40

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-40km

MGB-LA60

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-60km

MGB-LB60

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-60km

MGB-TSX

 SFP-Port 1000BASE-SX mini-GBIC module – 550m (-40~75℃)

MGB-TLX

 SFP-Port 1000BASE-LX mini-GBIC module – 10km (-40~75℃)

MGB-TL30

 SFP-Port 1000BASE-LX mini-GBIC module – 30km (-40~75℃)

MGB-TL70

 SFP-Port 1000BASE-LX mini-GBIC module – 70km (-40~75℃)

MGB-TLA10

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-10km (-40~75℃)

MGB-TLB10

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-10km (-40~75℃)

MGB-TLA20

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~75℃)

MGB-TLB20

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-20km (-40~75℃)

MGB-TLA40

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-40km (-40~75℃)

MGB-TLB40

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-40km (-40~75℃)

MGB-TLA60

 SFP-Port 1000BASE-BX (WDM, TX:1310nm) mini-GBIC module-60km (-40~75℃)

MGB-TLB60

 SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module-60km (-40~75℃)
