This 100/1000M media converter can be use between 10Base-T and 10Base-FL or 100Base-TX cable and 100Base-FX fiber cable or 1000Base-T cable and 1000Base-S/LX fiber cable for data transmission. It provides stand-alone RJ-45 electrical interface port and supply power to others, and can automatically cross connection with switch and hub network. And feature with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator. Also it can be realize the interconnection between motherboard servers, Repeaters, hubs, switches terminal.

Plug and play design makes easy installation, no on-site adjustment, all the light, electrical interface port is in line with international standards. It can extend the network transmission up to 20km. This gigabit fiber media converter is suitable for Bad industrial environment or high requirements for lightning protection, Intelligent transportation supervisory system(ITS)and safe city, High-speed way supervisory/Tele-communication system, IP network camera, security surveillance system for large corporations, multi-function network system.

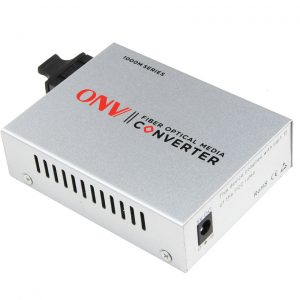

Product Name Single Port Dual Fiber Gigabit Media Converter
Product  Model ONV1110-MCX-O
Interface 1x copper cable RJ45 port +1x fiber SC port, support power supply
Transmission Distance 20Km
Fiber Description Multimode dual fiber, SC port
Fiber Bandwidth 1.25G
Wavelength 850nm
Network Bandwidth 1000MHz
Ethernet Specifications Bandwidth: 1.6Gbps (non-blocking)
Network Latency (100 to 100Mbps): the maximum delay less than 20 microseconds
Packet Buffer Memory: 96KB
Address Database Size: 1,000
MTBF: 190,000 hours (about 21 years)
Protocol IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
LED Indicator System, Power, Connecting , working status
Power Supply 3.5W
Dimension/ Weight Dimension : 94×71×26mm
Weight : 0.65kg
Working Environment Working Temperature:0°~ 55°C

Storage Temperature: -20°~ 75°C

Working Humidity: 10%~90%, non-condensing

Storage Humidity: 10%~95%, non-condensing

Operational Altitude: 3000m (10,000ft)

Storage Altitude: 3000m (10,000ft)

Radiation CE mark, commercial

FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety CE mark, commercial

CE/LVD EN60950

Warranty 1 year warranty ( 2 years warranty for power adapter)
