ONV-POE33064P

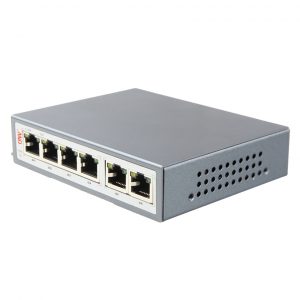

ONV 4x Gigabit PoE ports+2x Gigabit Uplink ports PoE switch (ONV-POE33064P)

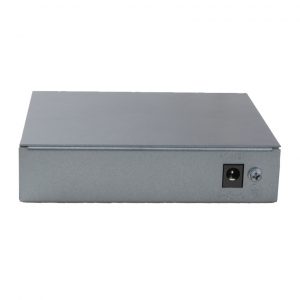

4x Gigabit PoE ports+2x Gigabit Uplink ports PoE switch, among which port 3 to port 6 supports PoE IEEE 802.3af international standard, each port power is 15.4W, the whole power is 65W. Switch power adapter is external.
Ordering Note: Default PoE power supply type is end-span(12, 36 line pair), mid-span(45, 78 line pair) optional

SKU: ONV-POE33064P

Category: Unmanaged PoE Switches

Description

Overview

Applications

Two High Speed Uplink Ports The built-in two Gigabit uplink ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 8.8Gbps switching capacity. All RJ45 ports can auto adjust the highest connection speed for a normal working, Auto Uplink technology can ensure proper network connection.

Installation Steps

Physical Application Reference

Application Situations

Million HD surveillance transmission and power supply
Wireless AP distribution transmission and power supply
VoIP transmission, intelligent home systems
City intelligent traffic monitoring system (ITS), safe city, and wireless city
Highway surveillance system, electronic road surveillance, snapshot system
large industrial factory& enterprise security surveillance system, network multifunction system
Remote multimedia teaching & campus surveillance, video conferencing systems
Building intercom, wireless communications, video surveillance

Ordering Note: Default PoE power supply type is end-span(12, 36 line pair), mid-span(45, 78 line pair) optional

Key Features

Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras
Port 3 to port 6 compatible with IEEE802.3af/at standard power supply
4x 10/100 /1000Mbps automatic adjustment RJ45 ports
Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
Auto-flip ports (Auto MDI/MDIX)
Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
Maximum PoE Power: 65W (all PoE ports, port 3 to port 6)
Store-and-forward architecture
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
Wall-mounted design, easy to install and use
Automatic adjustment, plug and play, no need software and protocol conversion
